Torque Converter Seal: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission. Refer to: Transmission .
- Install the special tool. Use Special Service Tool: 307-625 Fixture, Bench Mounting.
- Mount the transmission to the bench-mounted holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission., 307-625 Fixture, Bench Mounting.
- Remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
-
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.
Using the special tools, remove the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.
- Remove the torque converter hub seal snap ring.

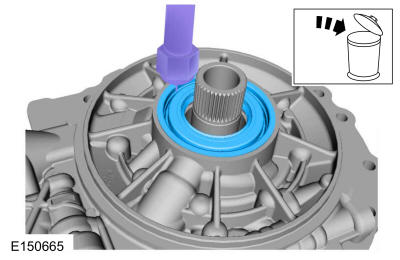

- Using a dent puller, remove and discard the torque converter hub seal. Use the General Equipment: Puller
