Roll Restrictor RH: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

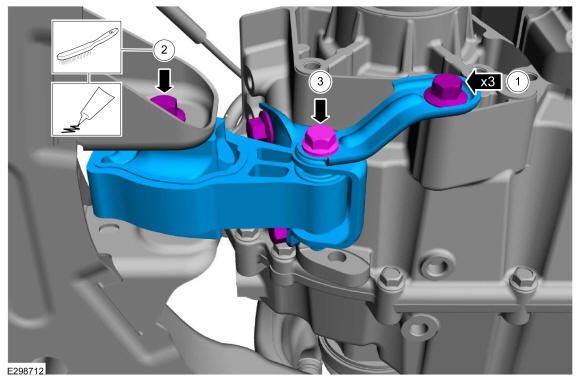

1. Install the roll restrictor bracket and the bolts.
  Torque : 59 lb.ft (80 Nm)
2. NOTE: Clean the bolt using a wire brush and apply Motorcraft® Threadlock and Sealer to the threads.

  Install the roll restrictor bolt.

  Torque : 85 lb.ft (115 Nm)
3. Tighten the roll restrictor bolt.
  Torque : 52 lb.ft (70 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and the bolts.

Courtesy of FORD MOTOR COMPANY
