Main Control Cover: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

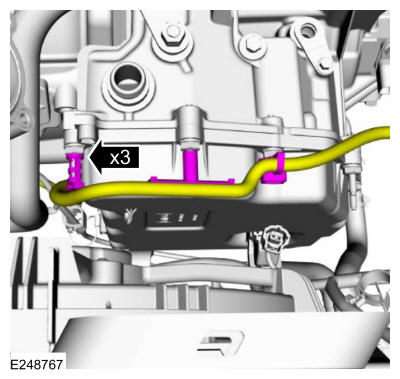

- Disconnect the wiring harness retainers.
- If equipped, remove the bolts and the underbody shield.

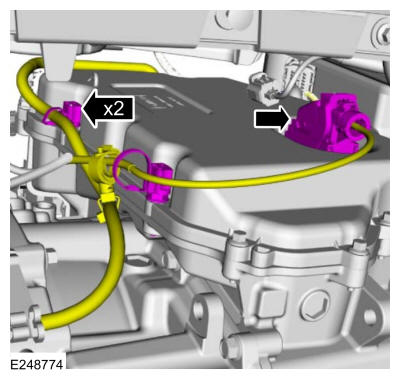

- Disconnect the wiring harness retainers and the transmission electrical connector.

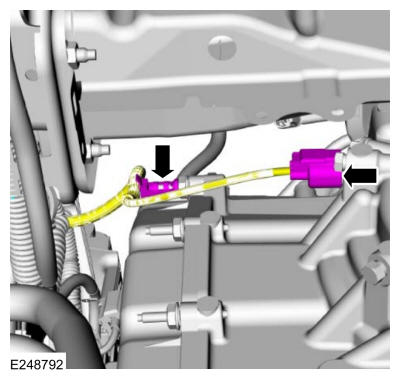

- Disconnect the wiring harness retainer and the TSS sensor electrical connector.
-
NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

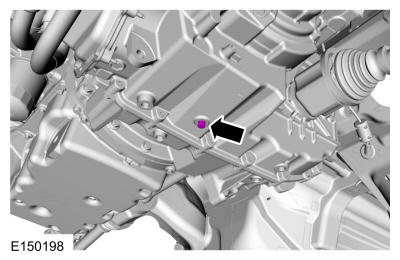

Remove the transmission fluid drain plug and allow the transmission fluid to drain.
- Install the transmission fluid drain plug when finished.
Torque : 106 lb.in (12 Nm)
- Install the transmission fluid drain plug when finished.
-
NOTE: Note the location of the stud bolts for assembly.

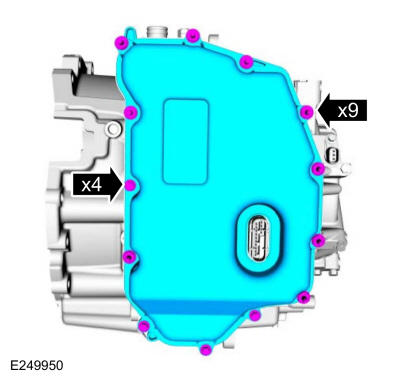

Remove the bolts, stud bolts and the main control cover.
