Halfshaft Seal RH - FWD: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.0L Duratec-HE (125kW/170PS) - MI4, FWD .

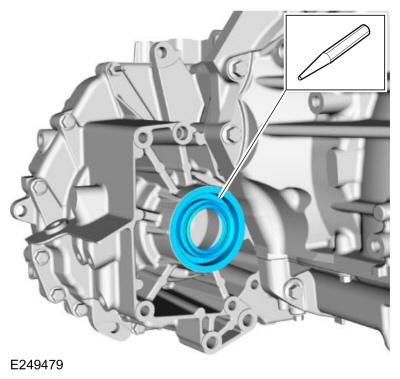

  2. Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD327309Courtesy of FORD MOTOR COMPANY

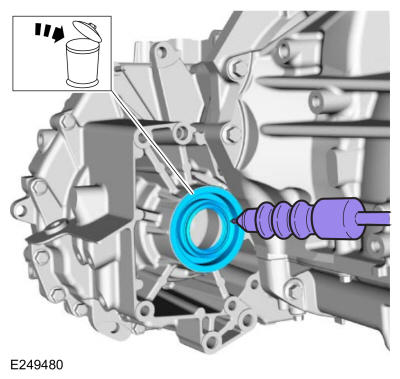

  3. Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
GFD327310Courtesy of FORD MOTOR COMPANY
