Transmission Fluid Drain and Refill
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | WSS-M2C938-AMERCON® LV, |
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the bolts and the underbody shield.
-
NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

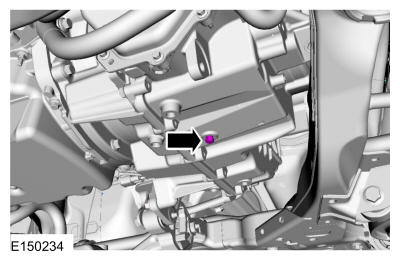

Remove the drain plug and drain the transmission fluid. Install the drain plug.
Torque : 106 lb.in (12 Nm)
- Release the clips and position aside the air cleaner cover.
-
NOTE: With the lower air cleaner assembly removed, only idle the engine with the vehicle on a hoist. Do not drive vehicle with the lower air cleaner assembly removed or engine damage may occur.
- Remove the pushpin retainer.
- Remove the isolator.
- Disconnect the resonator pipe.
- Remove the air lower cleaner assembly.
- Disconnect the vent tube retainer.
- Compress the constant tension clamp and remove the transmission vent from the fill tube.
-
NOTE: The following fluid amounts listed below are for initial fill only. The transmission fluid must be even with the oil leveling plug hole and the transmission must be at normal operating temperature 85-93 deg.C (185-200 deg.F) or transmission damage can occur.
- Transmission overhaul (includes main control and torque converter drain)
Volume
: 6.34 qt (6 L)
- Main control overhaul or replace (with out transmission overhaul)
Volume
: 5.28 qt (5 L)
- Transmission draining and filling (for engine and halfshaft related repairs)
Volume
: 4.23 qt (4 L)
- Material
: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
- Transmission overhaul (includes main control and torque converter drain)
- Start the engine and select each gear, stopping in each position and allowing the transmission to engage.
- With the vehicle on a level hoist, the engine running in PARK, remove the oil leveling plug and allow the transmission fluid to drain until its even with the oil leveling plug hole. If the transmission fluid does not drain from the oil leveling plug hole add transmission fluid in increments of.25 L (0.264 qt) until the transmission fluid is even with the oil leveling plug hole. Install the oil leveling plug.
- Standard transmission case (M10 plug)
Torque : 71 lb.in (8 Nm)
- Fuel economy transmission case (M20 plug)
Torque : 26 lb.ft (35 Nm)
- Standard transmission case (M10 plug)
- With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.
- Connect the vent tube retainer.
-
- Install the air lower cleaner assembly.
- Connect the resonator pipe.
- Install the isolator.
- Install the pushpin retainer.
- Position back the air cleaner cover and attach the clips.
- Drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
- With the vehicle on a level hoist, the engine running in PARK and the transmission fluid at normal operating temperature 85-93 deg.C (185-200 deg.F), remove the oil leveling plug and allow the transmission fluid to drain until it is even with the oil leveling plug hole. Install the oil leveling plug.
- Standard transmission case (M10 plug)
Torque : 71 lb.in (8 Nm)
- Fuel economy transmission case (M20 plug)
Torque : 26 lb.ft (35 Nm)
- Standard transmission case (M10 plug)
- If equipped, install the underbody shield and the bolts.
