Transmission Case: Disassembly

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The transmission case bushing should only be removed if the bushing is damaged.
    NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

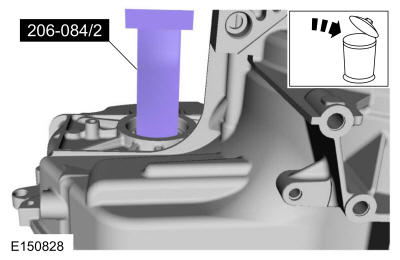

    If necessary, use the special tools to remove and discard the LH transmission case bushing from the transmission case. Use Special Service Tool: 206-084 Installer, Wheel Speed Sensor Ring. Use the General Equipment: Hydraulic Press

    GFD327178Courtesy of FORD MOTOR COMPANY
  2. Remove the differential ring gear snap ring.
    GFD327402Courtesy of FORD MOTOR COMPANY
  3. Remove the differential ring gear.
GFD327403Courtesy of FORD MOTOR COMPANY
