Transmission Case: Assembly
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

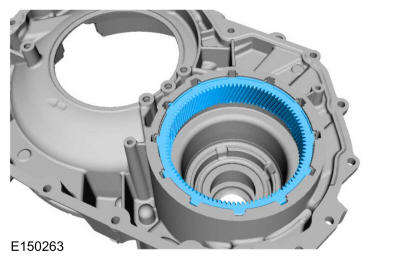

- Install the differential ring gear in the torque converter housing.
-
NOTE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transmission.

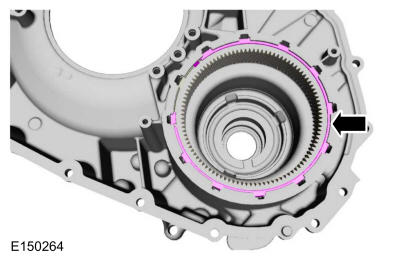

Install the beveled differential ring gear snap ring with the flat side facing down.
-
NOTE: Make sure the snap ring is seated in the groove.

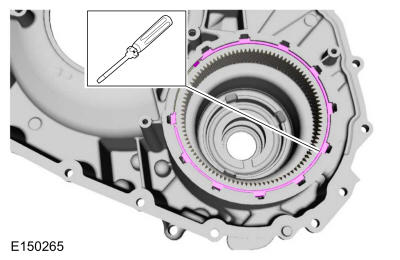

Seat the snap ring. Use the General Equipment: Flat Headed Screw Driver
- If the transmission case bushing was removed, install a new bushing on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-664 Case Bushing Installer.
- Place a small amount of Retaining Compound on only the outside of the entire outer circumference of the new red Teflon® coated bushing before installation.
Material : Loctite® 648 / 1835922 (WSK-M2G349-A4)

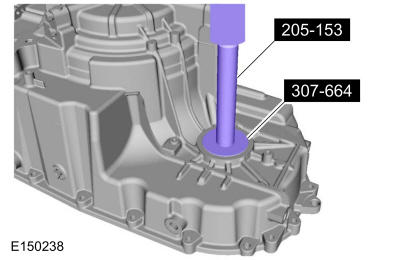

- Using the special tool, install the new bushing in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-664 Case Bushing Installer. Use the General Equipment: Hydraulic Press
