Rear Halfshaft: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The halfshaft seal has to be replaced whenever the halfshaft is removed.
- Replace the rear halfshaft seal. Refer to: Rear Halfshaft Seal .
-
NOTE: The halfshaft circlip has to be replaced whenever the halfshaft is removed.
Install the new rear halfshaft retaining circlip.

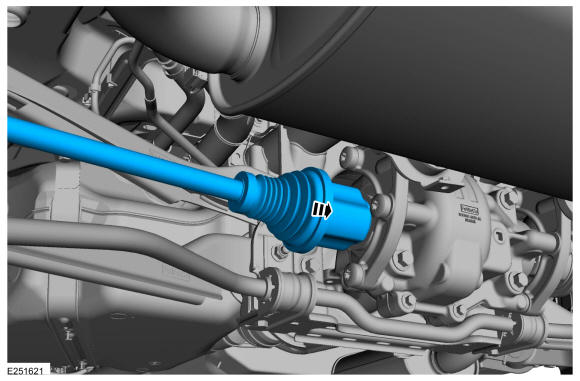

- Install the rear halfshaft.

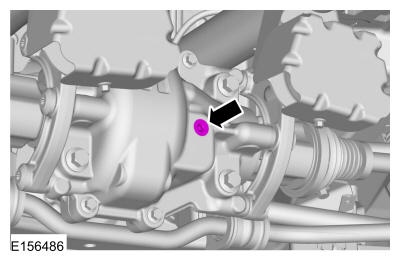

- Remove the filler plug.
-

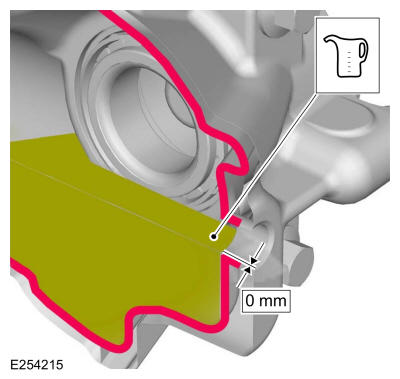

NOTE: Fill the rear axle with 0.47-0.62L (1.0-1.3 pt) of rear axle lubricant. If fluid level is low, fill to 0-2 mm (0-0.079 in) below the bottom of the filler hole.
Correct the rear axle oil level if necessary. Refer to: Specifications .
Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
- Install the filler plug.
Torque: 18 lb.ft (25 Nm)
- Install the wheel knuckle. Refer to: Wheel Knuckle - Vehicles With: Rear Drum Brakes .
