Inner Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear halfshaft. Refer to: Rear Halfshaft .
    • Remove and discard the CV joint boot clamps. Use the General Equipment: ViseUse the General Equipment: Vise Jaw Protectors

    • Position the CV joint boot back and remove the CV joint tripod housing.

    GFD324417Courtesy of FORD MOTOR COMPANY

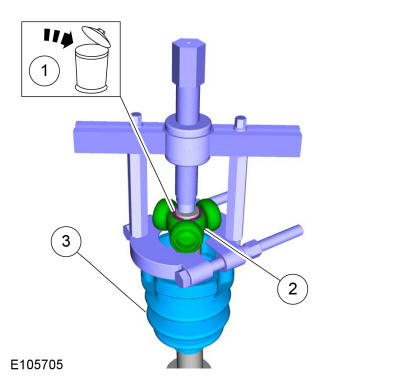

  3. NOTE: Make sure that the component is clean, free of foreign material and lubricant.

    1. Remove and discard the CV joint tripod circlip. Use the General Equipment: Puller Use the General Equipment: Bearing Separator Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors
    2. Remove the CV joint tripod.
    3. Remove the inner CV joint boot.

GFD324526Courtesy of FORD MOTOR COMPANY
