Outer Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .
If equipped. Mark the damper position on the halfshaft.

Courtesy of FORD MOTOR COMPANY

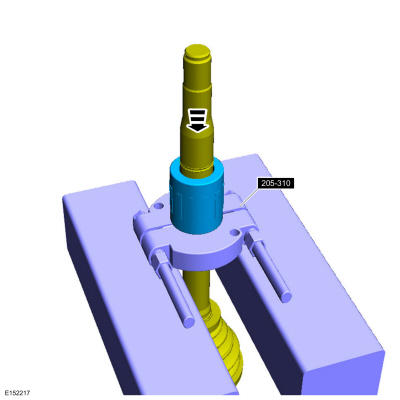

If equipped. Using the special tool, remove the damper. Use Suggested Tool: 205-310 Remover, Bearing/Gear. Tool shown or a commercially available equivalent can be used. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
Remove and discard the CV joint boot clamps.

Courtesy of FORD MOTOR COMPANY
Remove the outer CV joint boot.

Courtesy of FORD MOTOR COMPANY
