Inner Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front halfshaft. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 .

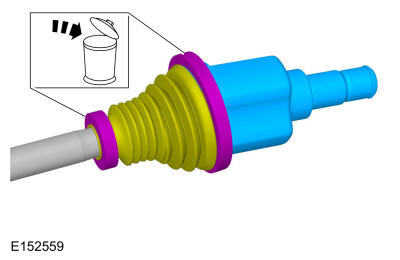

    • Remove and discard the large and small CV boot clamps. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors

    • Position the CV joint boot and the remove the inner CV joint housing.

    GFD324417Courtesy of FORD MOTOR COMPANY

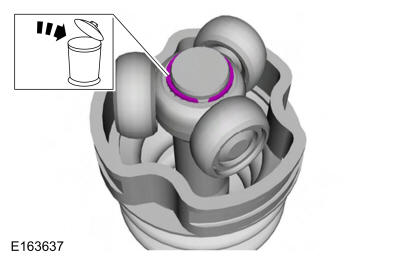

  3. Remove and discard the CV joint tripod bearing circlip. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors
    GFD324418Courtesy of FORD MOTOR COMPANY
  4. NOTE: Make sure that the component is clean, free of foreign material and lubricant.

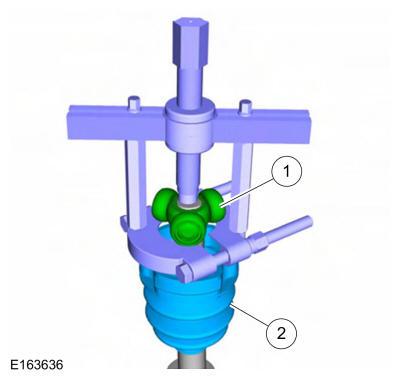

    1. Using the bearing separator and bearing puller remove the CV tripod. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Puller Use the General Equipment: Bearing Separator
    2. Remove the inner CV joint boot.

GFD324419Courtesy of FORD MOTOR COMPANY
