Wheel Hub - Vehicles With: Rear Disc Brakes: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake disc. Refer to: Brake Disc .
Remove the bolt and position aside the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY
Remove and discard the wheel hub retainers.

Courtesy of FORD MOTOR COMPANY

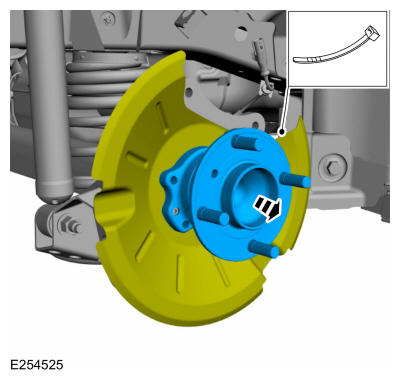

Remove the wheel hub and position aside the brake backing plate.

Courtesy of FORD MOTOR COMPANY
