Wheel Hub - Vehicles With: Rear Disc Brakes: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure that new bolts are installed.NOTE: Only tighten the bolts finger tight at this stage.

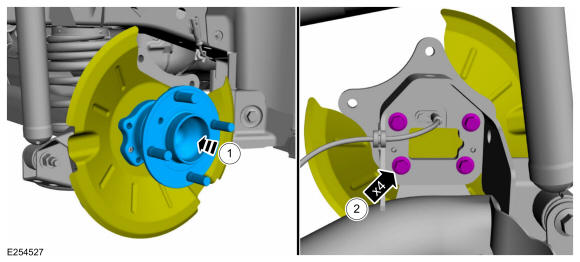

- Install the brake backing plate and the wheel hub.
- Install the new retainers.
- Tighten the bolts in sequence in two stages.
Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 50 deg.
- Install the wheel speed sensor bolt and fix the retainer.
Torque: 80 lb.in (9 Nm)
- Install the brake disc. Refer to: Brake Disc .
