Trailing Arm Bushing: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the component is clean, free of foreign material and lubricant.

NOTE: Make sure that this component is installed to the noted removal position.

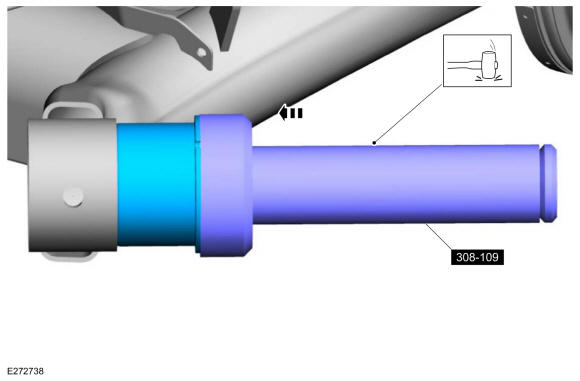

On both sides. Install the new rear trailing arm bush.. Use Special Service Tool: 308-095 Installer, Input Shaft Bearing.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Coil springs and strut assemblies are compressed under extreme load. Always use a spring compressor for disassembly. Follow procedure instructions carefully and make sure the spring compressor has the correct spring plates or adapters. Failure to follow these instructions may result in serious personal injury.
1. Install the spring and remove the special service tool.
2. Remove the special service tool. Use the General Equipment: Spring Compressor
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that your vehicle is on level ground.

On both sides.

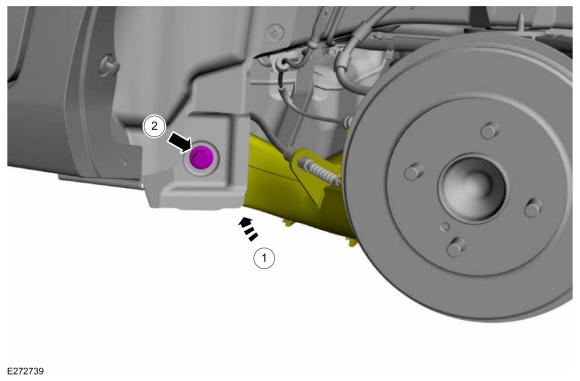

1. Position the trailing arm.. Use the General Equipment: Transmission Jack
2. NOTE: Only tighten the bolts finger tight at this stage.

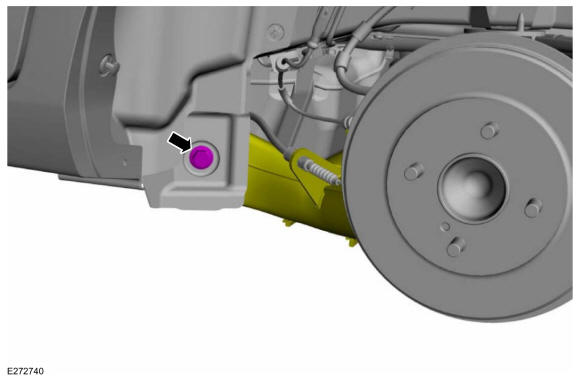

  Install the new rear trailing arm bushing bolt.
Courtesy of FORD MOTOR COMPANY
Position aside the transmission jack. Remove the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

On both sides. Tighten the trailing arm bolt.

Torque: Stage 1: 59 lb.ft (80 Nm) Stage 2: 120 deg.
