Rear Shock Absorber: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: LH side shown, RH side similar.

Refer to: Health and Safety Precautions .
Remove the wheel and tire. Refer to: Wheel and Tire .

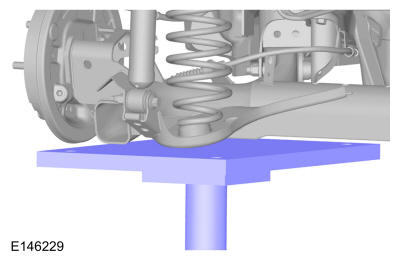

Support the rear suspension. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Remove and discard rear shock absorber lower bolt and nut.

Courtesy of FORD MOTOR COMPANY

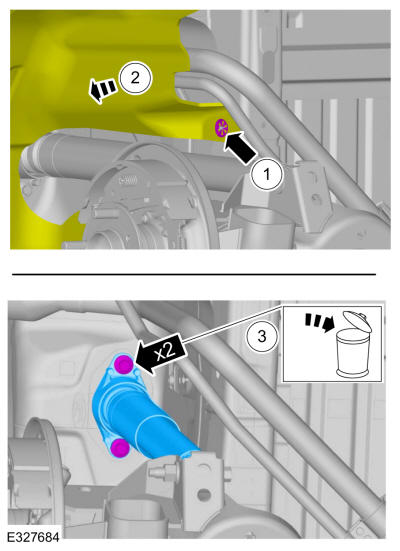

1. Remove the retainer.
2. Position aside the fender splash shield.
3. Remove and discard the upper bolts and remove the rear shock absorber.

Courtesy of FORD MOTOR COMPANY
