Rear Shock Absorber: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

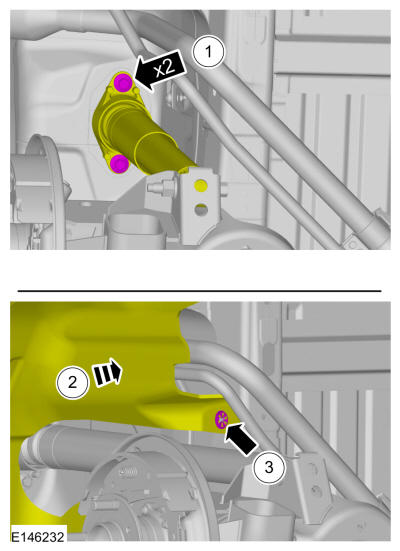

1. Position the rear shock absorber and install the rear shock absorber upper bolts.
  Torque: 22 lb.ft (30 Nm)
2. Position the fender splash shield.
3. Fix the retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nuts finger tight at this stage.

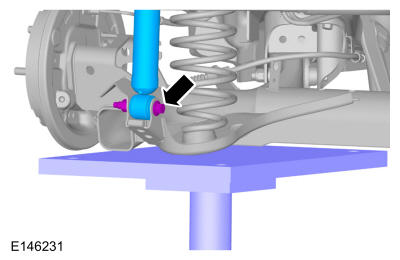

Install the new rear shock absorber lower bolt and nut.

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

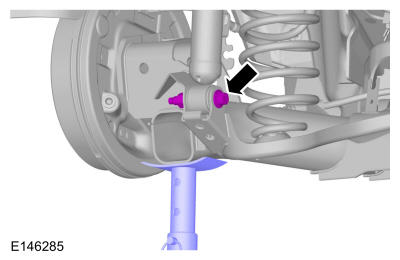

Tighten the rear shock absorber lower bolt and nut. Use the General Equipment: Vehicle/Axle Stands
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
