Beam Axle - Vehicles With: Rear Drum Brakes: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Brake and Clutch Systems Health and Safety Precautions .
Apply the parking brake and remove the parking brake control lever boot. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove and discard the lock washer.

Courtesy of FORD MOTOR COMPANY

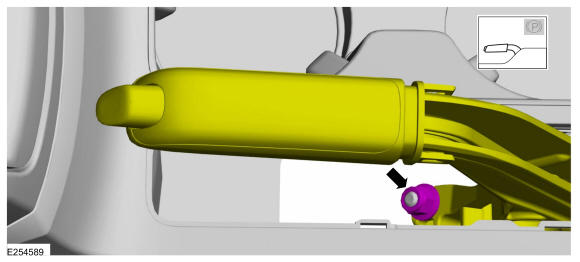

Release the parking brake cable tension and loosen the parking brake cable adjustment nut. Loosen: 5 turn(s)

Courtesy of FORD MOTOR COMPANY
Remove the wheel and tire. Refer to: Wheel and Tire .

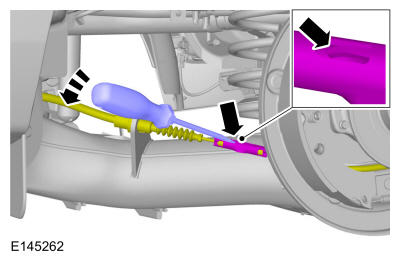

On both sides. Using a screwdriver, bend the cable union tab upward and then disconnect the front cable from the union. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
On both sides. Detach the front parking brake cable.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the retainer and position aside the parking cable.

Courtesy of FORD MOTOR COMPANY

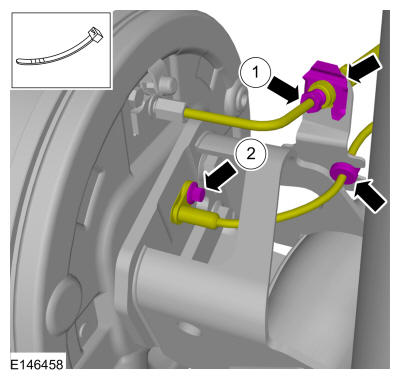

On both sides.
1. Remove the retainer and position aside the brake hose.
2. Remove the bolt and position aside the rear wheel speed sensor.
Courtesy of FORD MOTOR COMPANY
Position a transmission jack under the beam axle. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Remove the brake drum. Refer to:Parking Brake Cable - Vehicles With: Rear Drum Brakes .

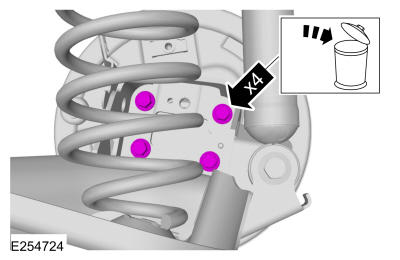

On both sides. Remove and discard the wheel hub mounting bolts.

Courtesy of FORD MOTOR COMPANY

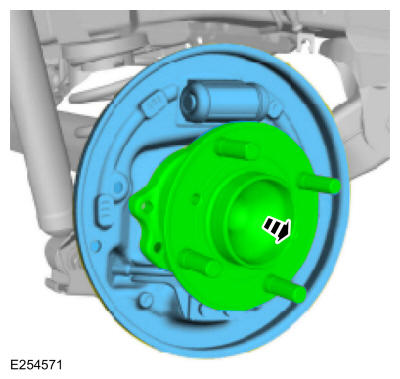

On both sides. Remove the wheel hub and the brake backing plate.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Take extra care when handling the compressed spring.

Using the special tool, compress and remove the spring. Use Special Service Tool: 204-167 Compressor, Coil Spring., 204-167-01 Adapter for 204-167.

Courtesy of FORD MOTOR COMPANY

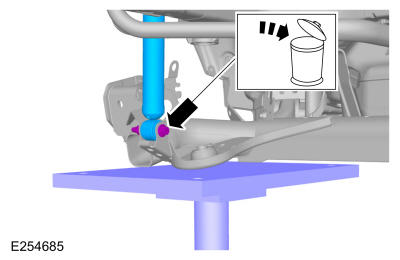

On both sides. Support the rear suspension. Remove and discard rear shock absorber lower bolt and nut. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
Remove and discard the beam axle bolts and remove the beam axle.

Courtesy of FORD MOTOR COMPANY
