Beam Axle - Vehicles With: Rear Disc Brakes: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Courtesy of FORD MOTOR COMPANY

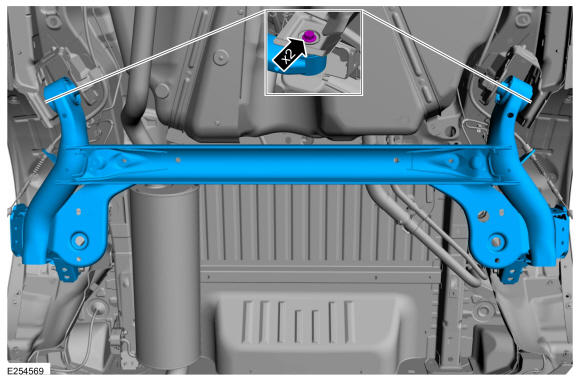

1. Install the beam axle and the new beam axle bolts. Use the General Equipment: Transmission Jack
  Torque: Stage 1: 59 lb.ft (80 Nm) Stage 2: 120 deg.
NOTE: Only tighten the nuts finger tight at this stage.

On both sides. Install the rear shock absorber and install the new rear shock absorber lower bolt and nut. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

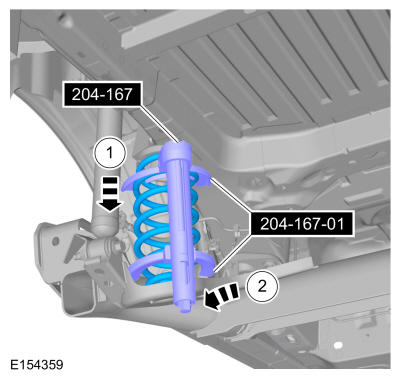

WARNING: WARNING: Take extra care when handling the compressed spring.

Remove the following items:
1. Use Special Service Tool: 204-167 Compressor, Coil Spring., 204-167-01 Adapter for 204-167.
Courtesy of FORD MOTOR COMPANY

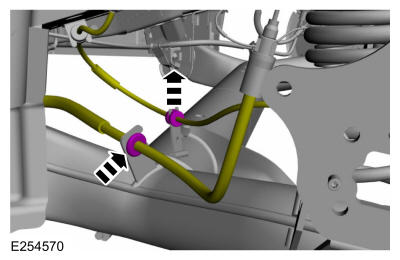

On both sides. Attach the parking brake cable and the wheel speed sensor wiring to the bracket.

Courtesy of FORD MOTOR COMPANY

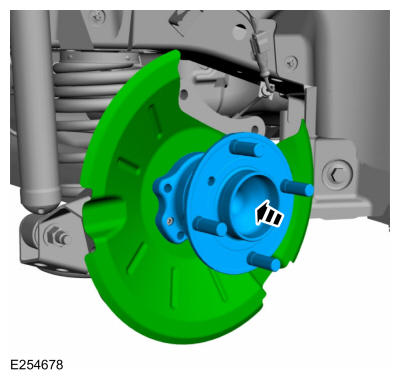

On both sides. Install the brake backing plate, the wheel hub and the retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Only tighten the nuts finger tight at this stage.

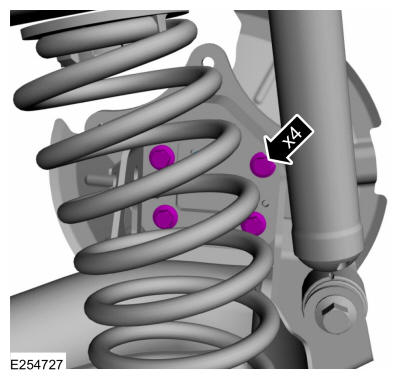

On both sides. Install the new wheel hub retainers.

Courtesy of FORD MOTOR COMPANY

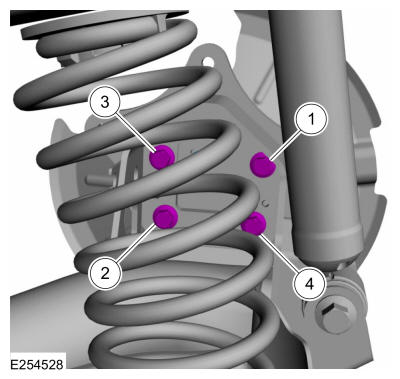

On both sides. Tighten the bolts in sequence in two stages.
Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 50 deg.

Courtesy of FORD MOTOR COMPANY

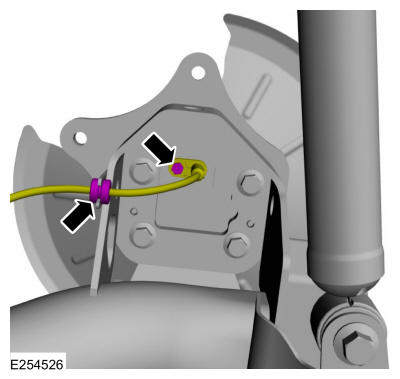

On both sides. Install the wheel speed sensor bolt and fix the retainer.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc .
Check and if necessary adjust the parking brake cable. Refer to: Parking Brake Cable Adjustment - Vehicles With: Rear Drum Brakes .
On both sides. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
On both sides. Install the new rear shock absorber lower bolt and nut. Use the General Equipment: Vehicle/Axle Stands
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Bleed the brake system. Refer to: Brake System Pressure Bleeding . Refer to: Brake System Pressure Bleeding .
On both sides. Install the wheel and tire. Refer to: Wheel and Tire .
