Rear Suspension - Component Location

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

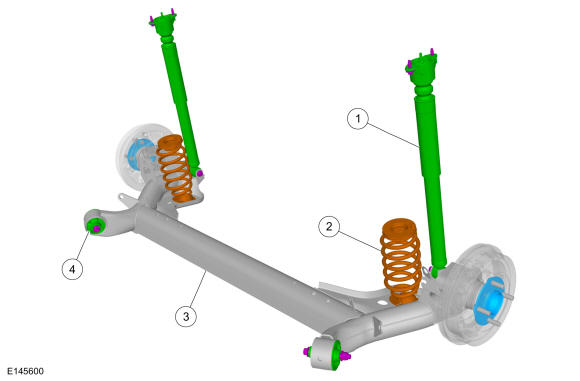

GFD324196Courtesy of FORD MOTOR COMPANY
Item Description
1 Shock absorber
2 Spring
3 Twist-beam rear axle
4 Rear axle bushing
