Front Wheel Bearing and Wheel Hub: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If removing the wheel hub, a new wheel bearing must be installed.

Remove the wheel knuckle. Refer to: Wheel Knuckle .
NOTE: After the wheel hub is removed from the wheel knuckle, the wheel bearing must be discarded.

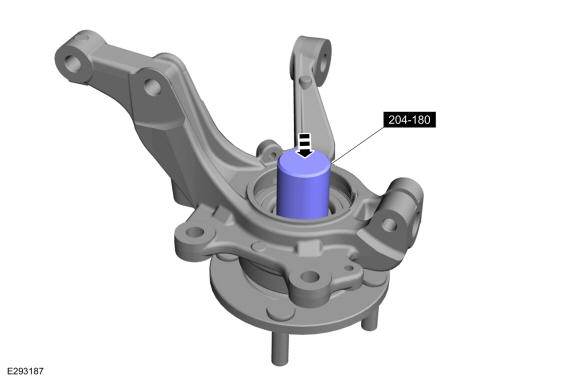

Remove the wheel hub and outer bearing race from the wheel knuckle using the hydraulic press and special tools. Use Special Service Tool: 204-180 (T93P-5493-A) Remover/Installer, Bushing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
NOTE: The Bearing Puller and Bushing Remover/Installer must be used to prevent damage to the hub. If the hub is damaged, a new hub must be installed.

NOTE: Do not use heat to remove the bearing inner ring or damage to the bearing may occur.

NOTE: This step may not be necessary if the wheel bearing inner race remains on the wheel bearing after removing the wheel hub.

Using the special tools remove the wheel bearing inner race from the wheel hub (if remaining). Use Special Service Tool: 204-180 (T93P-5493-A) Remover/Installer, Bushing., 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Visually check the wheel hub surfaces for abrasion.

Courtesy of FORD MOTOR COMPANY
Remove the wheel bearing snap ring.

Courtesy of FORD MOTOR COMPANY

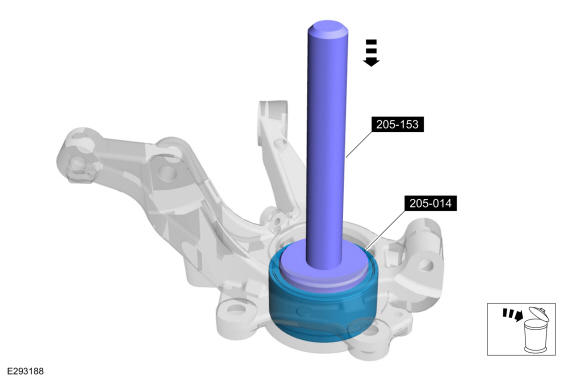

Remove the wheel bearing using the hydraulic press and special tools. Discard the wheel bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-014 (T60K-4616-A) Installer, Drive Pinion Bearing Cup. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
