Front Strut and Spring Assembly: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

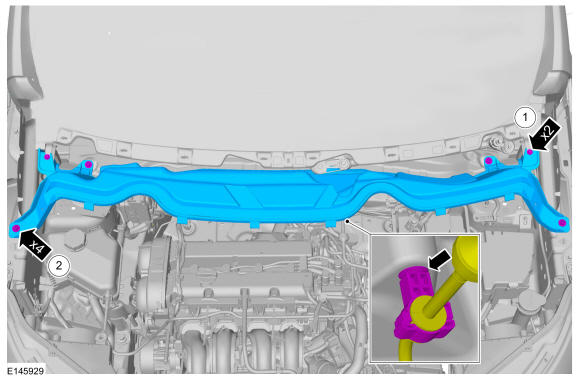

2. Detach the brake tube retainer, remove the retainers and the cowl panel grille.

   Torque: 1.: 27 lb.in (3 Nm) 2.: 44 lb.in (5 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Remove the wheel and tire. Refer to: Wheel and Tire .

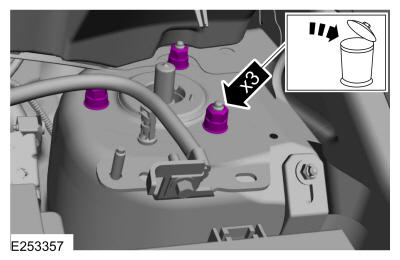

4. Remove and discard the strut and spring assembly upper mount nuts.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

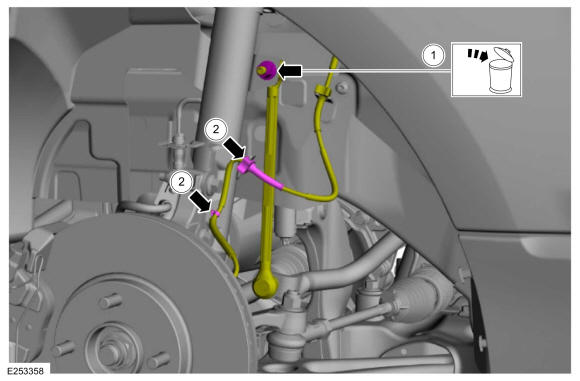

5. NOTE: Do not use power tools to remove or install the stabilizer bar link nuts or damage to the stabilizer bar link ball joints or boots may occur.
   NOTE: Do not hold the stabilizer bar link boot with any tool or damage to the boot may occur.
   NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.
   NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
   1. Remove and discard the stabilizer bar link upper nut and detach the link from the strut.

      Torque: 39 lb.ft (53 Nm)

   2. Detach the retainer and disconnect the wheel speed sensor harness from the strut and spring assembly bracket.

   Courtesy of FORD MOTOR COMPANY

6. Remove the bolt and position aside the brake hose.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Make sure that new bolts are installed.

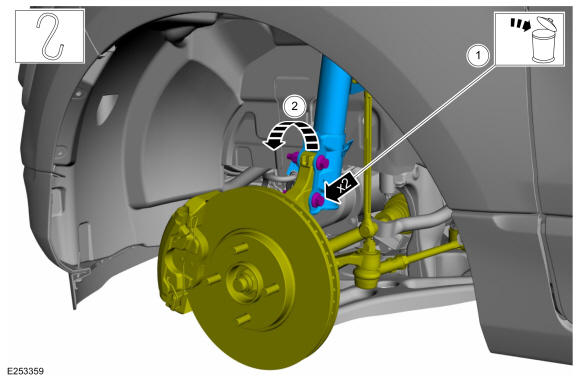

   1. Remove and discard the 2 front strut and spring assembly-to-wheel knuckle bolts and nuts.

      Torque: Stage 1: 59 lb.ft (80 Nm) Stage 2: 90 deg.

   2. Remove the front strut and spring assembly.
