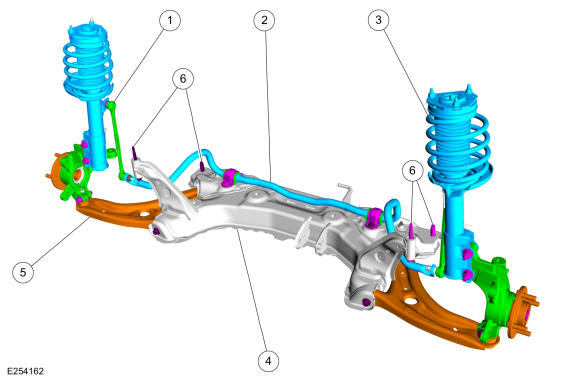

Front Suspension - Component Location

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Front stabilizer bar link
2	Stabilizer bar
3	Suspension strut and spring assembly
4	Subframe
5	Lower arm
6	Subframe attachment points
