Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Carry out the PMI procedure for the TRM. Refer to: Module Programming .

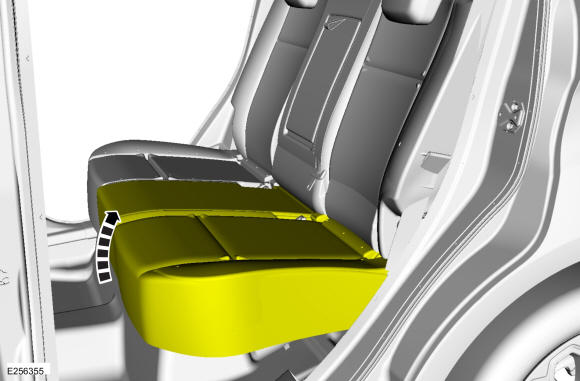

Position the second row seat cushion upwwards.

Courtesy of FORD MOTOR COMPANY

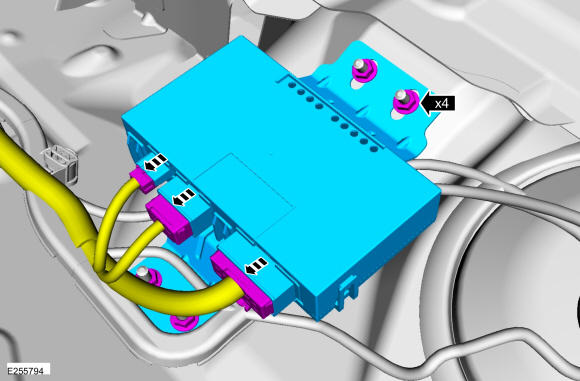

Remove the nuts and the trailer module.
- Disconnect the electrical connectors.
  Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
