Reversing Lamp: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH side reversing lamp assembly shown in illustration, LH side similar.

Remove the rear wheel and tire. Refer to: Wheel and Tire .

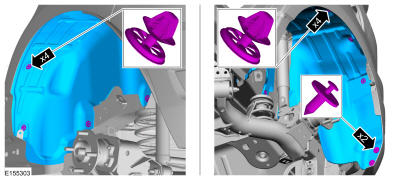

NOTE: Both RH and LH rear splash shield shown in illustration.

NOTE: Only remove the side required.

Remove the retainers and the rear splash shield on the appropriate side of the vehicle.

Courtesy of FORD MOTOR COMPANY

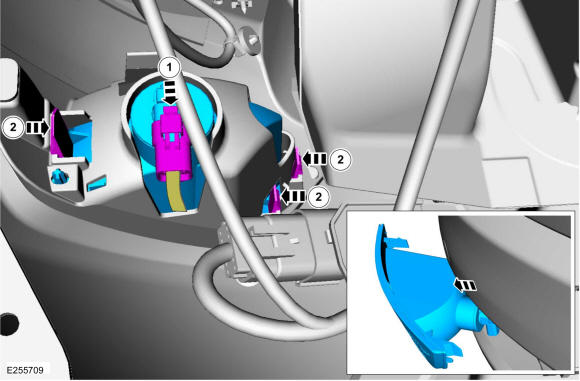

1. Disconnect the electrical connector.
2. Release the tabs and remove the reversing lamp assembly.

Courtesy of FORD MOTOR COMPANY
