Rear Lamp Bulb: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Turn signal bulb
NOTE:
RH rear lamp assembly shown in illustration, LH rear lamp assembly similar.
- Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .

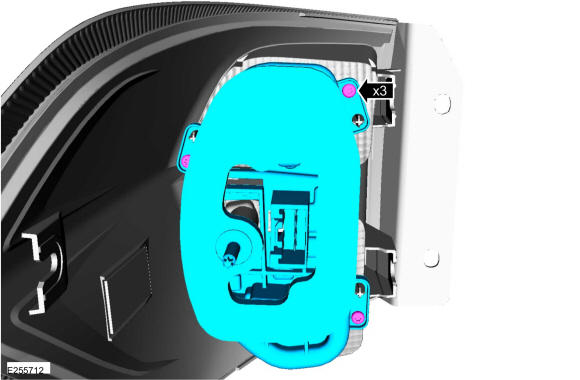

- Remove the screws and the and the bulb holder.

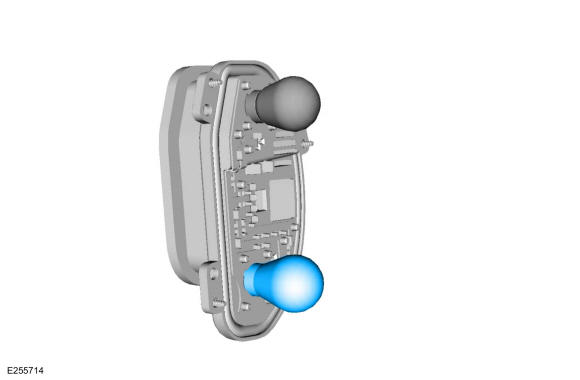

- Remove the turn signal bulb.
Tail lamp/stop lamp bulb
- Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .
- Remove the screws and the and the bulb holder.

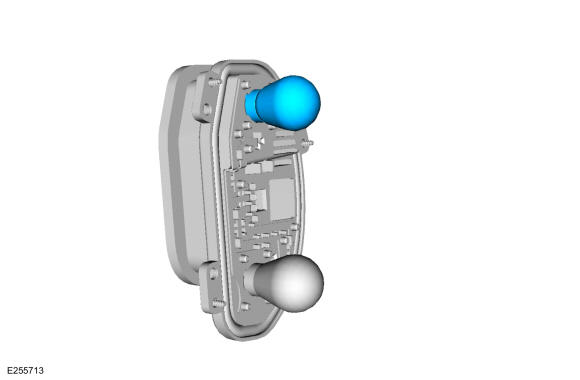

- Remove the tail lamp/stop lamp bulb.
