Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Liftgate reflector

NOTE: LH rear lamp assembly shown in illustration. RH rear lamp assembly similar.

Refer to: Liftgate Trim Panel .

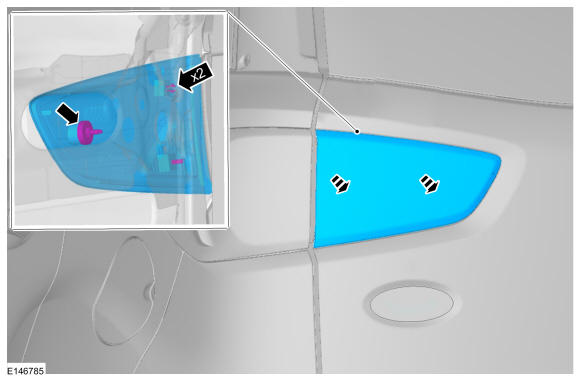

Release the retainers and remove the liftgate reflector.

Courtesy of FORD MOTOR COMPANY

Rear lamp assembly

NOTE: RH rear lamp assembly.

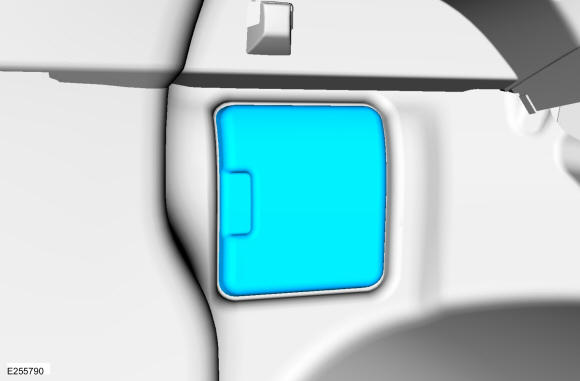

Open the RH access cover.

Courtesy of FORD MOTOR COMPANY

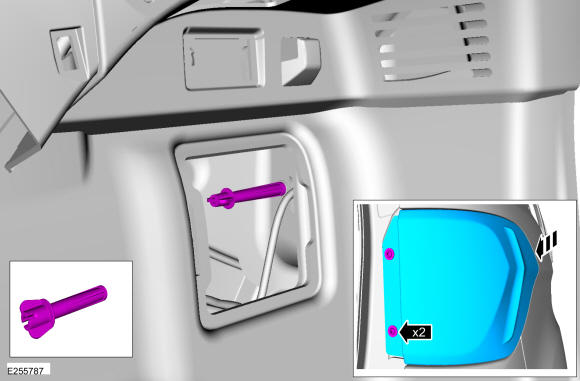

Remove the nut, two screws and the RH rear lamp assembly.

Courtesy of FORD MOTOR COMPANY

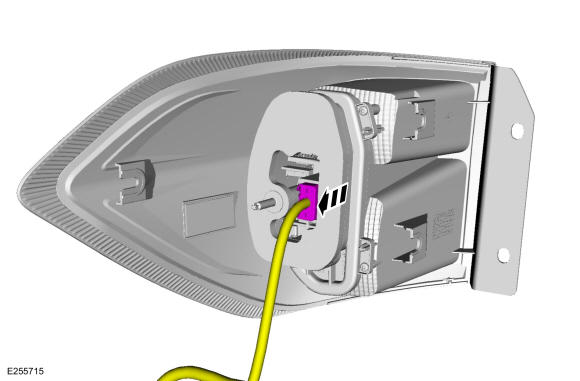

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

NOTE: LH rear lamp assembly.

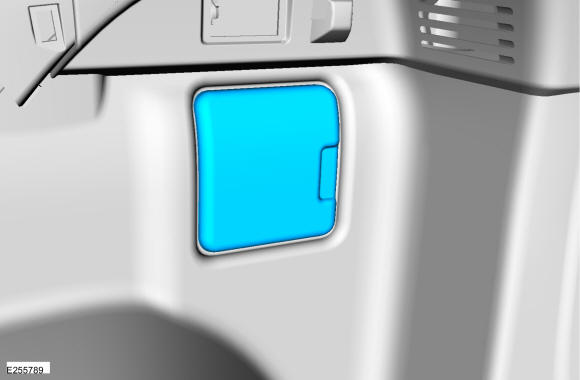

Open the LH access cover.

Courtesy of FORD MOTOR COMPANY

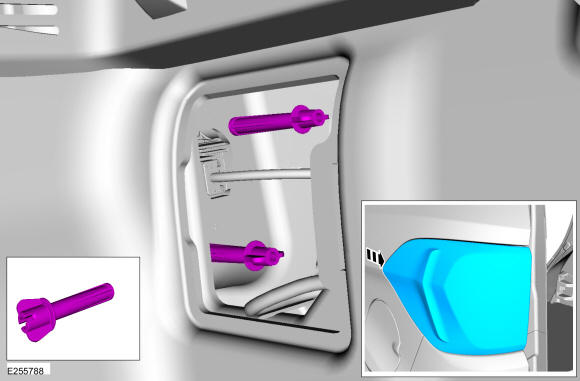

Remove the nuts, and the LH rear lamp assembly.

Courtesy of FORD MOTOR COMPANY

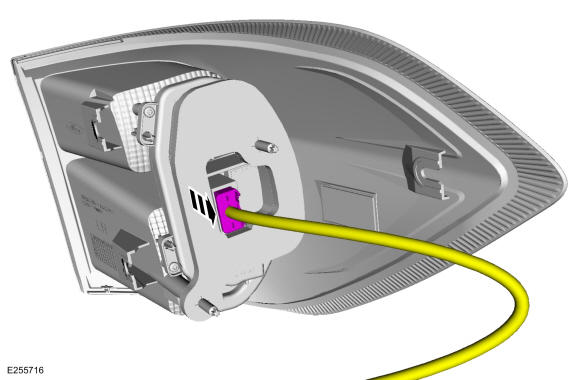

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
