Headlamp Switch: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

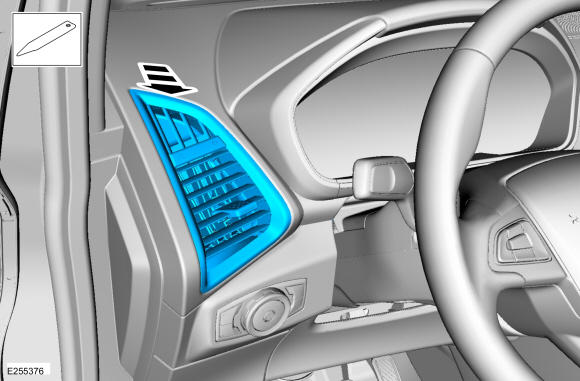

- Remove the LH vent. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

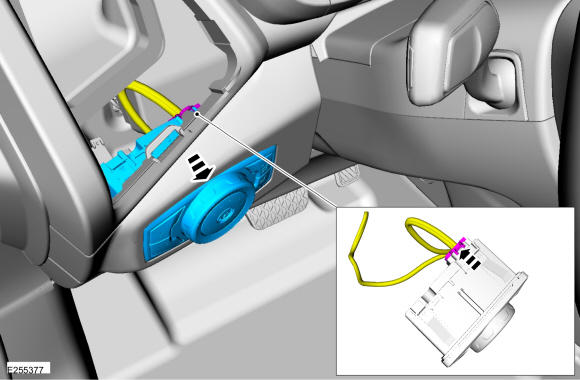

- Remove the headlamp switch assembly.
- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
