Headlamp Bulb: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

NOTE: The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp assembly where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed from the headlamp assembly.

NOTE: Make sure the headlamp switch and ignition switch are in the OFF position.

Vehicles equipped with halogen headlamps

NOTE: High beam.

NOTE: The headlamp assembly is shown in illustration, removed for clarity.

NOTE: LH side shown in illustration, RH side similar.

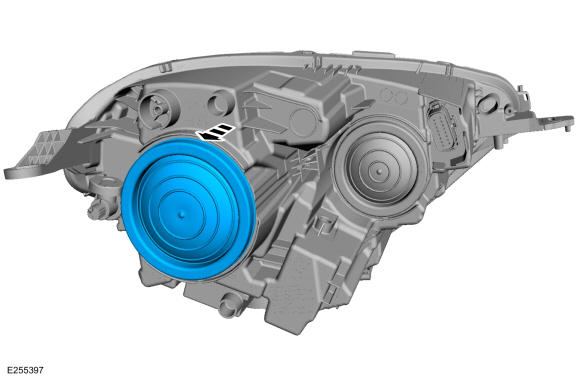

Remove the high beam bulb cover.

Courtesy of FORD MOTOR COMPANY

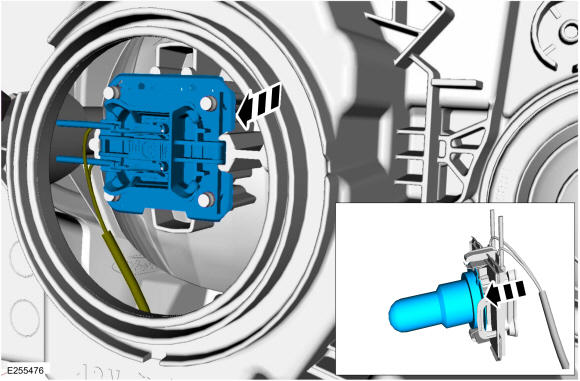

Remove the high beam bulb socket, and remove the bulb.

Courtesy of FORD MOTOR COMPANY

NOTE: Low beam.

NOTE: The headlamp assembly is shown in illustration, removed for clarity.

NOTE: LH side shown in illustration, RH side similar.

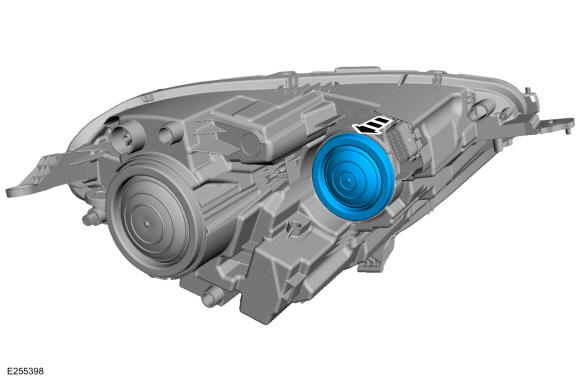

Remove the low beam bulb cover.

Courtesy of FORD MOTOR COMPANY

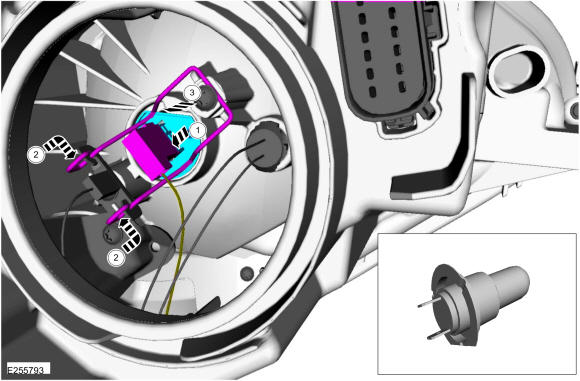

1. Disconnect the electrical connector.
2. Press the wire retaining tab downward then inward to release.
3. Remove the bulb.
Courtesy of FORD MOTOR COMPANY

Vehicles equipped with high intensity discharge headlamps

NOTE: High beam.

NOTE: The headlamp assembly is shown in illustration, removed for clarity.

NOTE: LH side shown in illiustration, RH side similar.
Remove the high beam bulb cover.

Courtesy of FORD MOTOR COMPANY

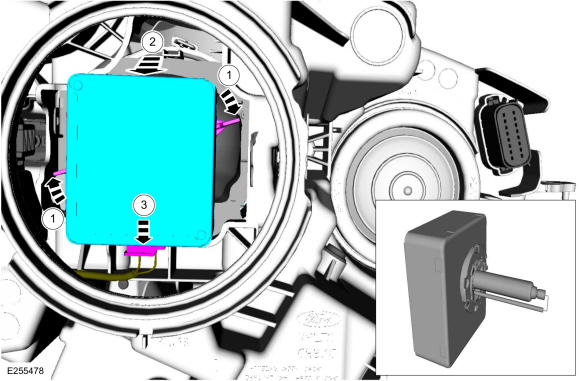

1. Rotate the headlamp bulb locking collar clockwise to release.
2. Remove the headlamp bulb assembly.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

NOTE: Low beam.

NOTE: The headlamp assembly is shown in illustration, removed for clarity.

NOTE: LH side shown in illustration, RH side similar.
Remove the low beam bulb cover.

Courtesy of FORD MOTOR COMPANY

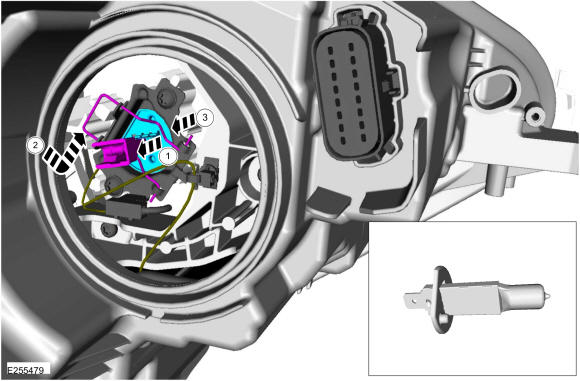

1. Disconnect the electrical connector.
2. Press downward then upward to release the wire retainer.
3. Remove the blub.
Courtesy of FORD MOTOR COMPANY

Marker light

NOTE: If equipped.

NOTE: The headlamp assembly is shown in illustration, removed for clarity.

NOTE: LH side shown in illustration, RH side similar.
Remove the low beam bulb cover.

Courtesy of FORD MOTOR COMPANY

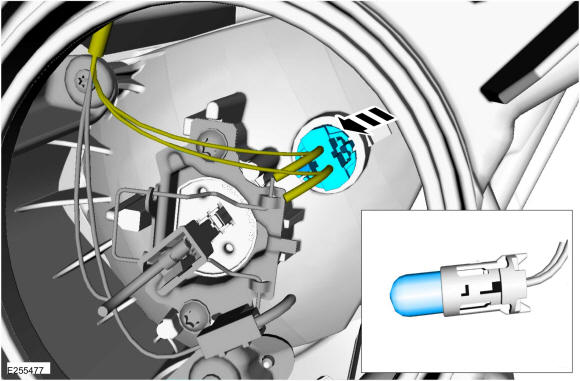

Remove the bulb socket from the headlamp assembly, then remove the bulb from the socket.

Courtesy of FORD MOTOR COMPANY
