Headlamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Take extra care not to scratch the headlamp lens.

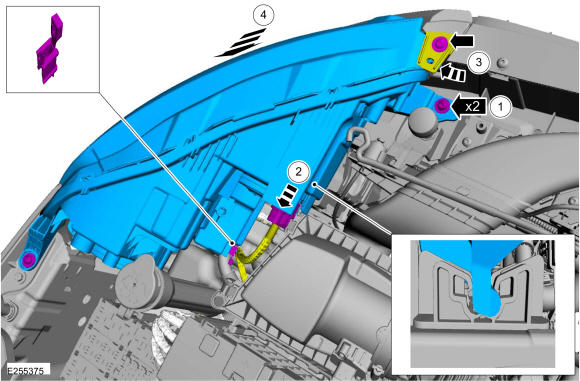

NOTE: RH side shown in illustration, LH side similar.
1. Remove the headlight mounting screws.
  Torque: 27 lb.in (3 Nm)
2. Disconnect the electrical connector.
3. Remove the bolt and postion the front bumper cover tab upward.
4. Remove the headlight assembly.
