Front Turn Signal Lamp Bulb: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.

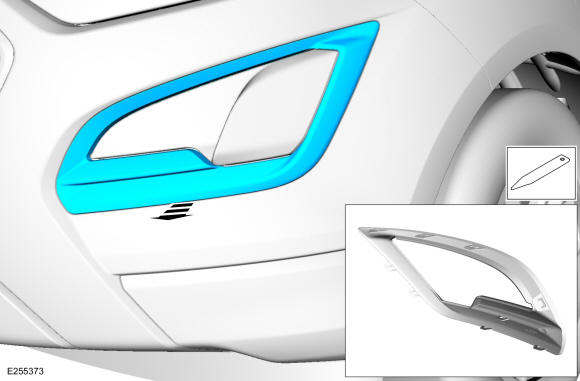

- Remove the combination front fog lamp turn signal assembly bezel. Use the General Equipment: Interior Trim Remover

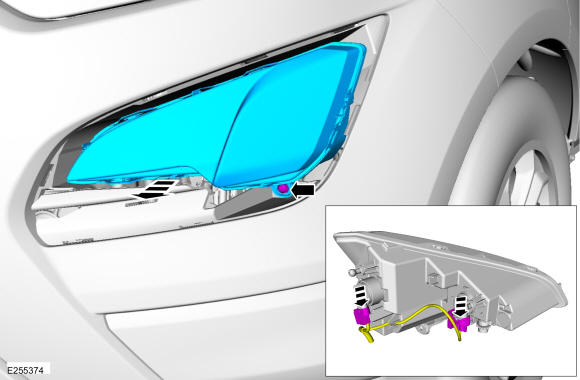

- Remove the combination front fog lamp turn signal assembly screw and the assembly.
- Disconnect the electrical connectors.

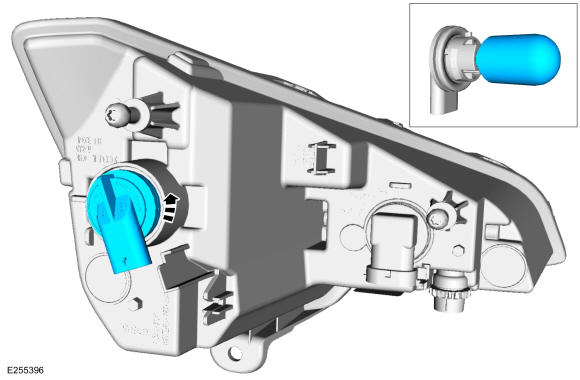

- Remove the turn signal socket from the combination front fog lamp turn signal assembly and remove the bulb from the socket.
