Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH steering wheel multifunction switch shown, RH switch similar.
  1. Remove the driver airbag. Refer to: Driver Airbag .

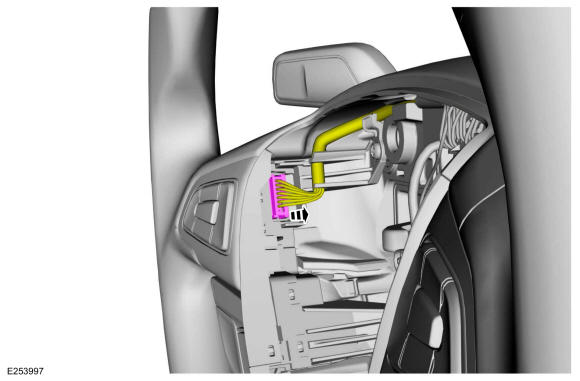

  2. Disconnect the steering wheel multifunction switch electrical connector.
    GFD324719Courtesy of FORD MOTOR COMPANY

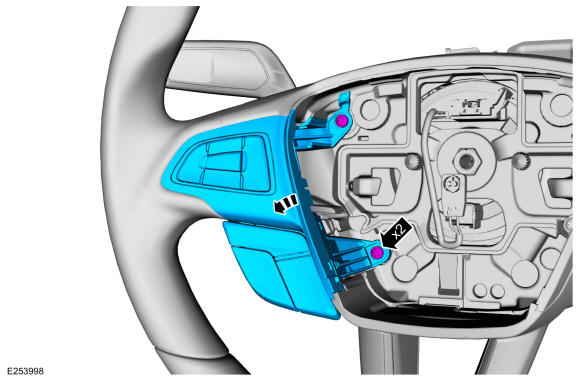

  3. Remove the retainers and remove the steering wheel multifunction switch.
GFD324720Courtesy of FORD MOTOR COMPANY
