Steering Column Multifunction Switch RH: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. NOTE: Make sure that the component terminals are not bent or damaged.

    Remove the RH steering column multifunction switch.

    1. Remove the retainers.
    2. Depress the tab and remove the RH steering column multifunction switch.

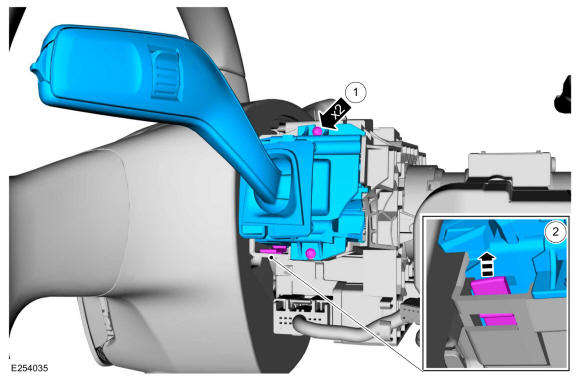

GFD324714Courtesy of FORD MOTOR COMPANY
