Ignition Switch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

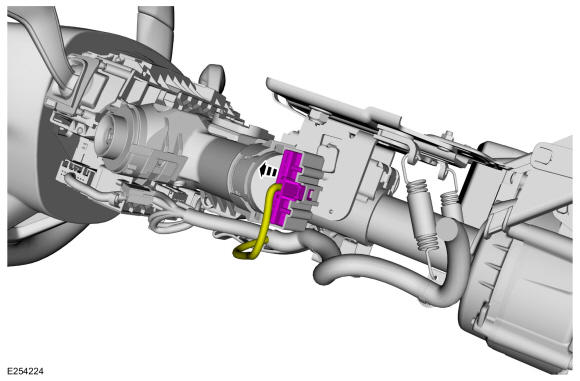

  2. Disconnect the ignition switch electrical connector.
    GFD324715Courtesy of FORD MOTOR COMPANY

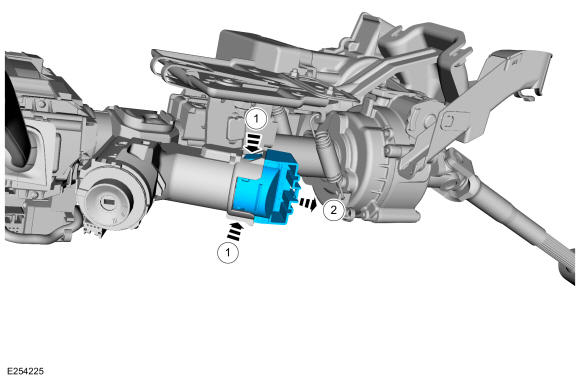

    1. Release the ignition switch clips.
    2. Remove the ignition switch.
GFD324716Courtesy of FORD MOTOR COMPANY
