Steering Gear: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front subframe. Refer to: Front Subframe .
-
NOTE: This step is only necessary when installing a new component.
Remove the front stabilizer bracket bolts.
Torque: 37 lb.ft (50 Nm)
-
NOTE: This step is only necessary when installing a new component.

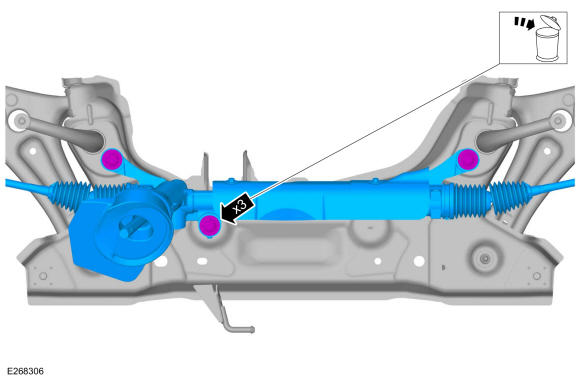

Remove and discard the steering gear mounting bolts and remove the steering gear.
Torque: 66 lb.ft (90 Nm)
