Steering Gear Boot: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The seal is to be reused unless damaged.

NOTE: Make sure that the seal is correctly located.

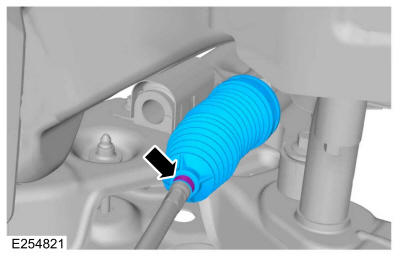

Inspect the steering gear boot inner seal.

Courtesy of FORD MOTOR COMPANY

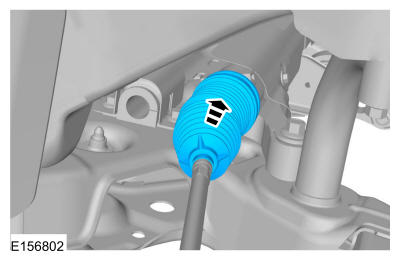

Install the steering gear boot.

Courtesy of FORD MOTOR COMPANY

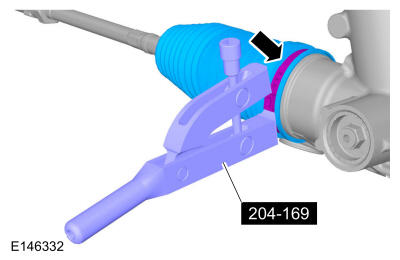

Install the steering gear boot inner clamp. Use Special Service Tool: 204-169 Clamping Tool, Boot Retaining Clamp.

Courtesy of FORD MOTOR COMPANY
Install the steering gear boot outer clamp.

Courtesy of FORD MOTOR COMPANY
Install the tie rod end jamb nut.

Courtesy of FORD MOTOR COMPANY
Install the tie rod end. Refer to: Tie Rod End .
