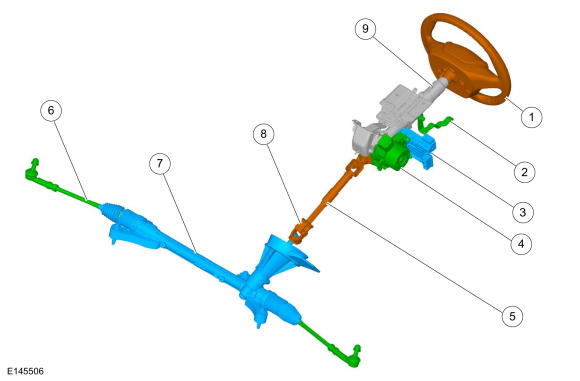

Power Steering - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Steering wheel |
| 2 |
Steering column height and length lever adjustment |
| 3 |
PSCM |
| 4 |
EPAS motor |
| 5 |
Steering column shaft |
| 6 |
Tie-rod |
| 7 |
Steering gear |
| 8 |
Universal joint
Comments:
Part of steering column shaft assembly |
| 9 |
Steering column |
