Mass Air Flow (MAF) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

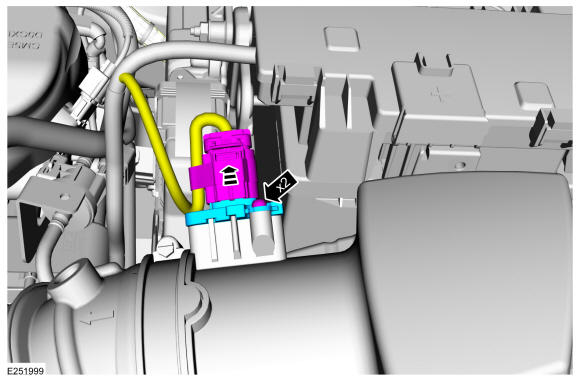

    1. Disconnect and remove the MAF sensor.

      Torque

      : 18 lb.in (2 Nm)

GFD326593Courtesy of FORD MOTOR COMPANY
