Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the HO2S electrical connector and remove the wiring harness retainer.

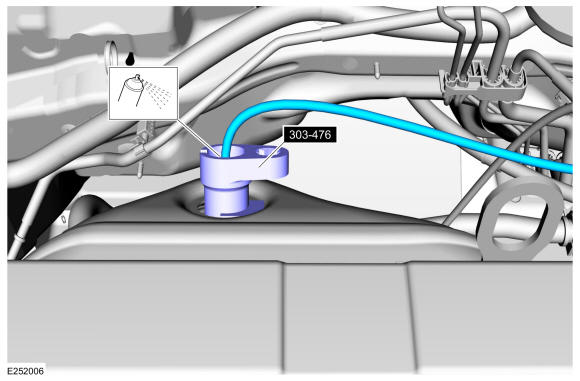

- Remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material
: Motorcraft® Penetrating and Lock Lubricant / XL-1
