Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

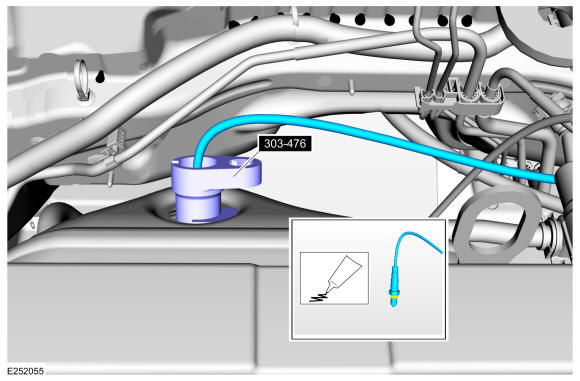

- Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula below. Install the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material
: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound
Torque
: 35 lb.ft (48 Nm)

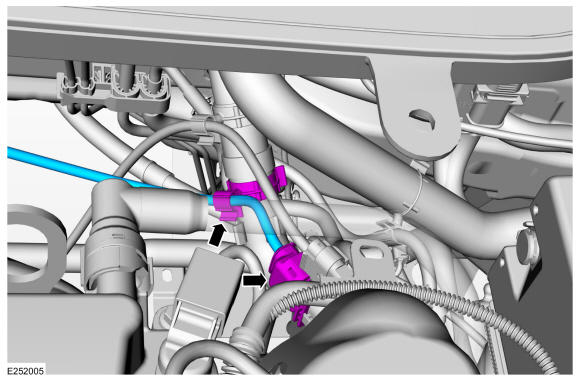

- Connect the HO2S electrical connector and install the wiring harness retainer.
