Fuel Rail Pressure (FRP) Sensor: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

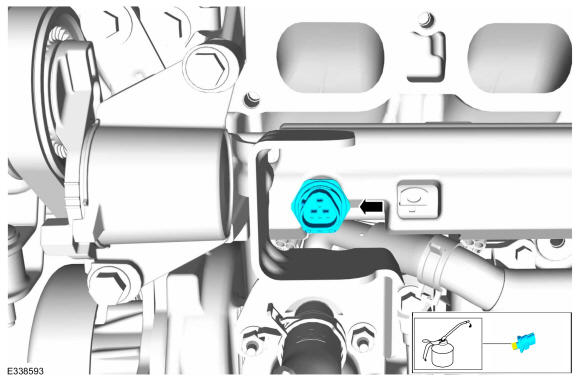

Lubricate the O-ring seal with clean engine oil, install the FRP sensor and the electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: During repair procedure, cleanliness is extremely important. Any foreign material, including any material created while cleaning or removing components that enters the fuel supply passages may cause engine failure.

Install the Fuel Rail Pressure (FRP) sensor and tighten in the following 5 stages:

Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
- Torque
  :Stage 1: 53 lb.in (6 Nm) Stage 2: 5 deg. Stage 3: Loosen: 90 deg. Stage 4: 53 lb.in (6 Nm) Stage 5: 21 deg.
