Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

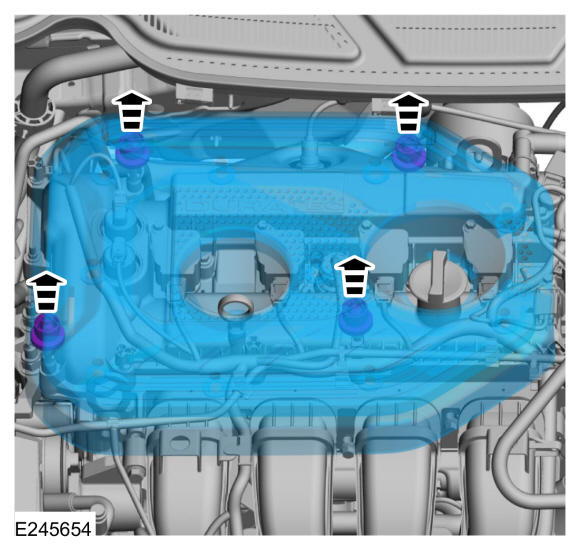

- Remove the engine appearance cover.

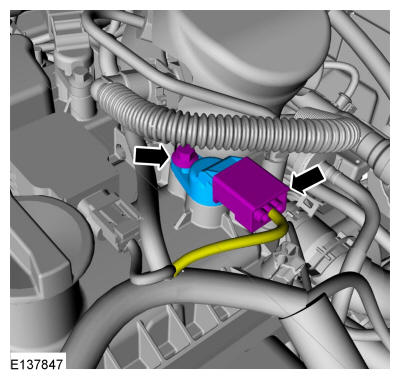

- LH CMP sensor Disconnect the electrical connector. Remove the retainer and the CMP sensor.
Torque
: 53 lb.in (6 Nm)

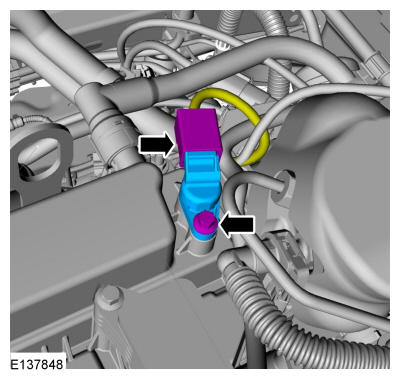

- RH CMP sensor Disconnect the electrical connector. Remove the retainer and the CMP sensor.
Torque
: 53 lb.in (6 Nm)
