Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Removal steps in this procedure may contain installation details.

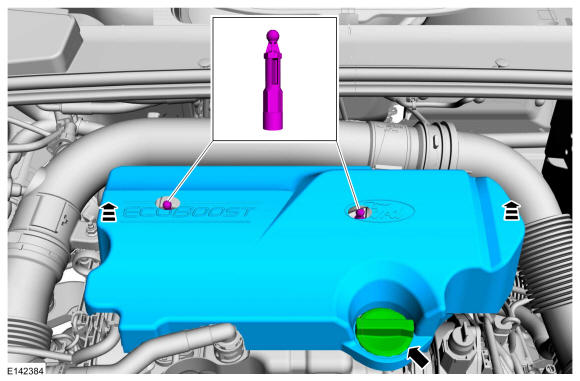

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

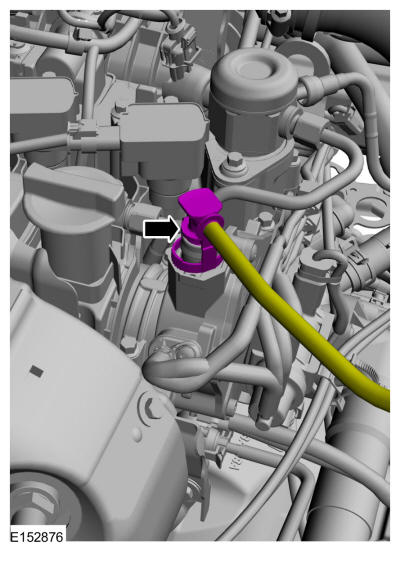

Disconnect vacuum tube.

Courtesy of FORD MOTOR COMPANY

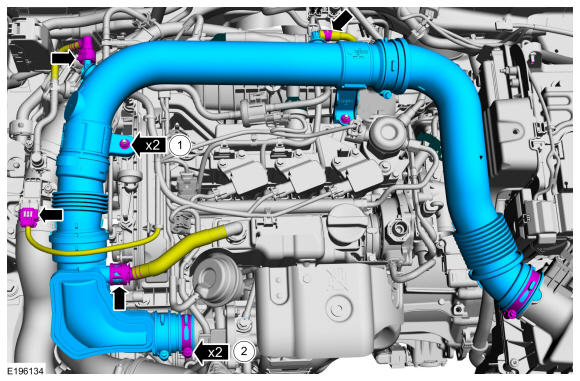

- Loosen the air cleaner outlet pipe clamps, remove the nuts. Disconnect the vacuum tube from air outlet pipe.
  Torque

  : Nut: 35 lb.in (4 Nm) Clamp: 97 lb.in (11 Nm)
- Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
- Disconnect the PCV quick release coupling.
- Disconnect the Turbocharger boost pressure and charge air temperature sensor electrical connector and remove the air cleaner outlet pipe assembly.
- * Clean, inspect, and cover all open ports.
Courtesy of FORD MOTOR COMPANY

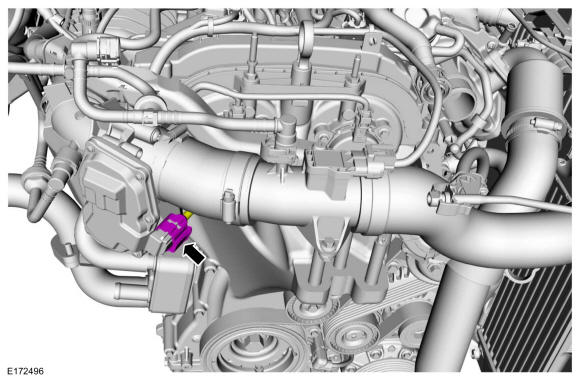

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

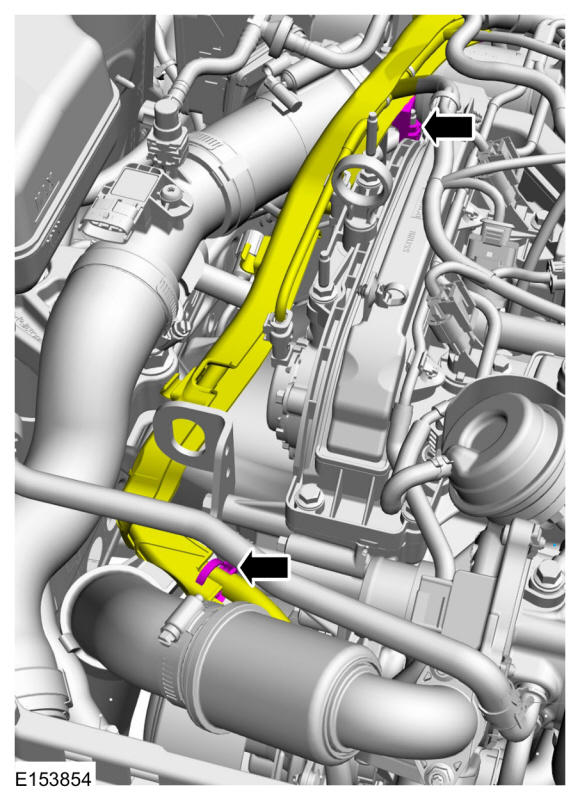

Position the harness aside.

Courtesy of FORD MOTOR COMPANY

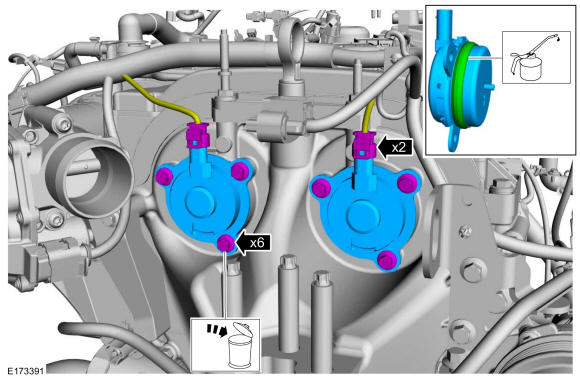

NOTE: The O-ring seals are to be reused unless damaged.

NOTE: Lubricate the O-ring with clean engine oil.

NOTE: Note the position of the components before removal.
- Disconnect the VCT oil control solenoid electrical connectors.
- Remove the retainers and the VCT oil control solenoids.
  Material

  : Engine Oil - SAE 5W-20 (WSS-M2C948-A)

  Torque

  : 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
