Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

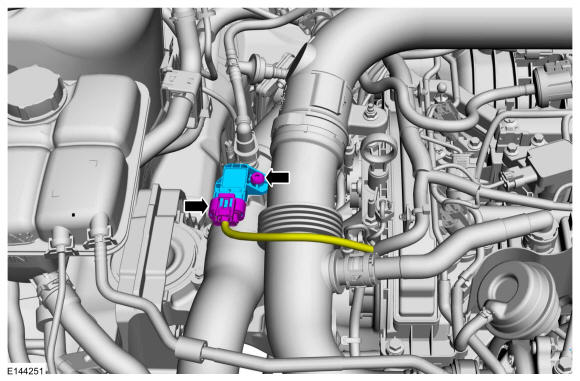

  1. Disconnect the electrical connector, remove retainer and the sensor.

    Torque

    : 71 lb.in (8 Nm)

GFD326525Courtesy of FORD MOTOR COMPANY
