Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

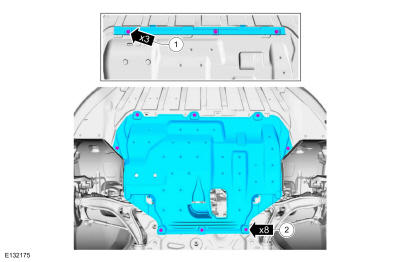

- Remove the underbody shield.
-

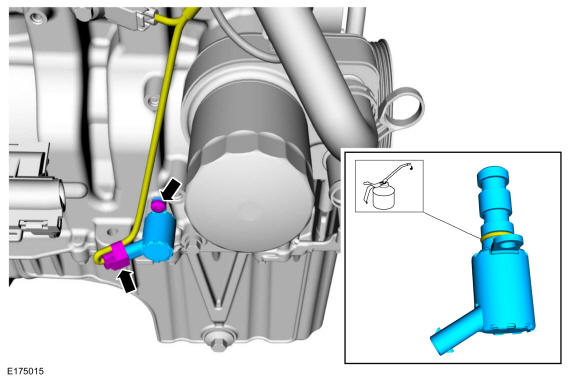

NOTE: Lubricate the o-ring with clean engine oil.
Disconnect the electrical connect, remove the retainer and sensor.
Material
: Engine Oil - SAE 0W-20 - Synthetic Blend Motor Oil / XO-0W20-Q1SP (WSS-M2C947-B1)
Torque
: 80 lb.in (9 Nm)
