Knock Sensor (KS): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

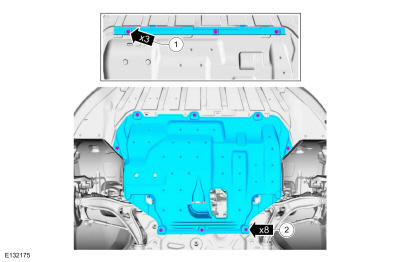

- Remove the underbody shield.
-
NOTE: Note the position of the component before removal.

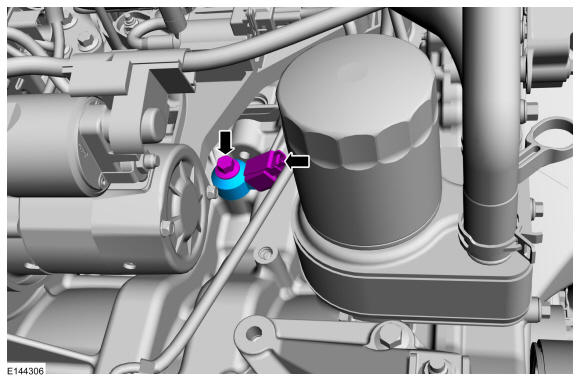

Disconnect the electrical connect, remove the retainer and the KS.
Torque
: 177 lb.in (20 Nm)
