Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

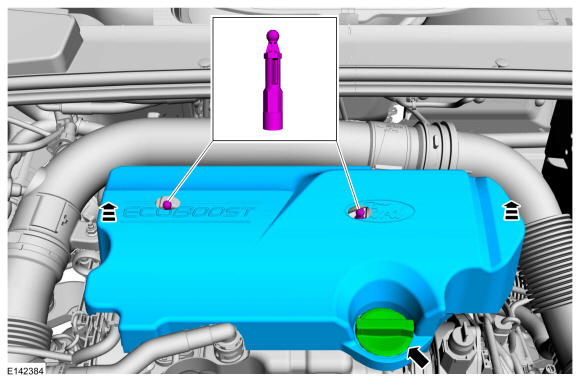

- Remove the engine appearance cover.
-
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

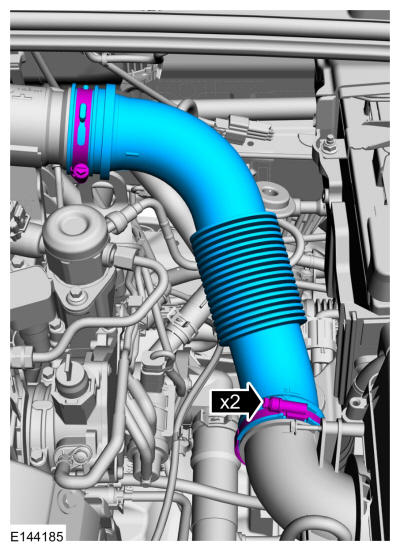

Remove the air cleaner outlet tube.
Torque
: 44 lb.in (5 Nm)

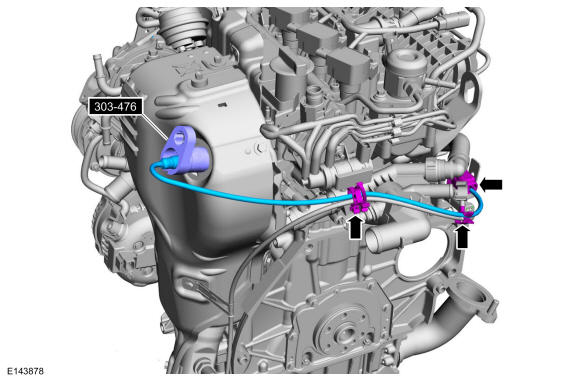

- Using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
