Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

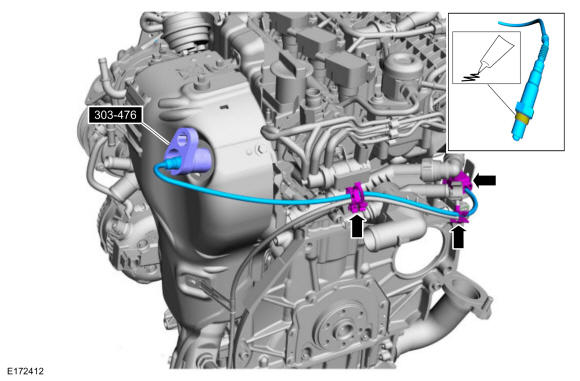

- Apply anti-seize to thread of sensor, using special tool install the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material
: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2
Torque
: 35 lb.ft (48 Nm)
