Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

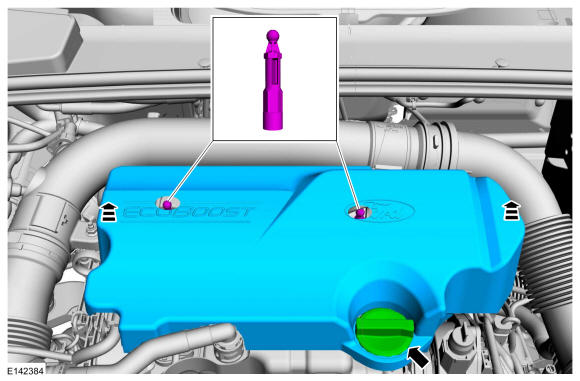

- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
-
NOTE:
Be prepared to collect escaping fluid.

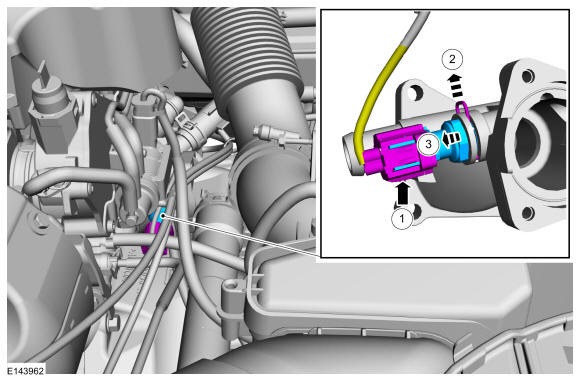

- Disconnect the electrical connector.
- Remove the retaining spring clip.
 Courtesy of FORD MOTOR COMPANY
|
