Cylinder Head Temperature 2 (CHT2) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the turbocharger. Refer to: Turbocharger .

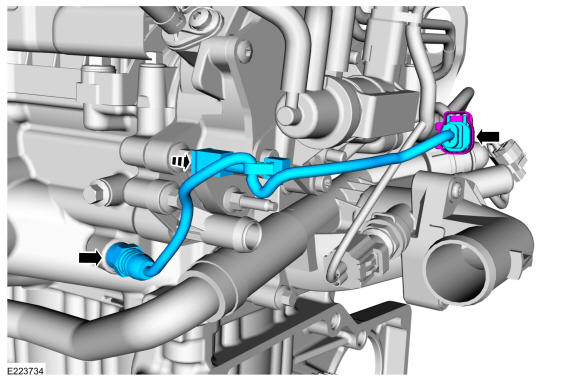

- Disconnect the electrical connector and the harness retainer. Remove the CHT sensor.
Torque
: 106 lb.in (12 Nm)
