Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .

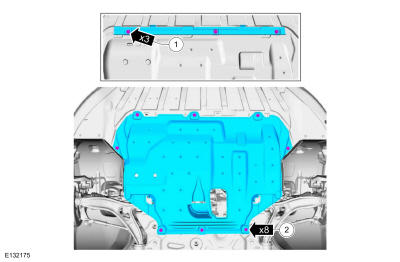

- Remove the underbody shield.

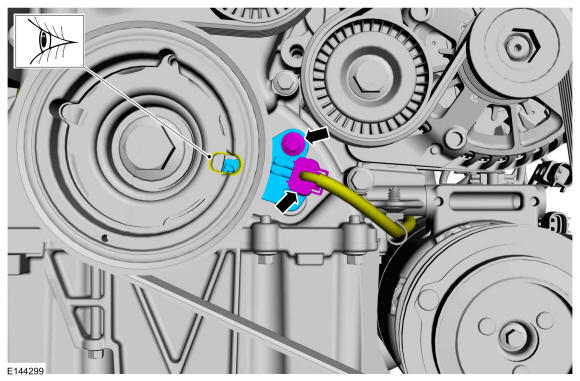

- Disconnect the CKP sensor electrical connector, remove the retainer and the sensor.
Torque
: 89 lb.in (10 Nm)
